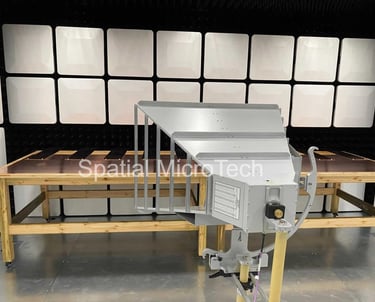

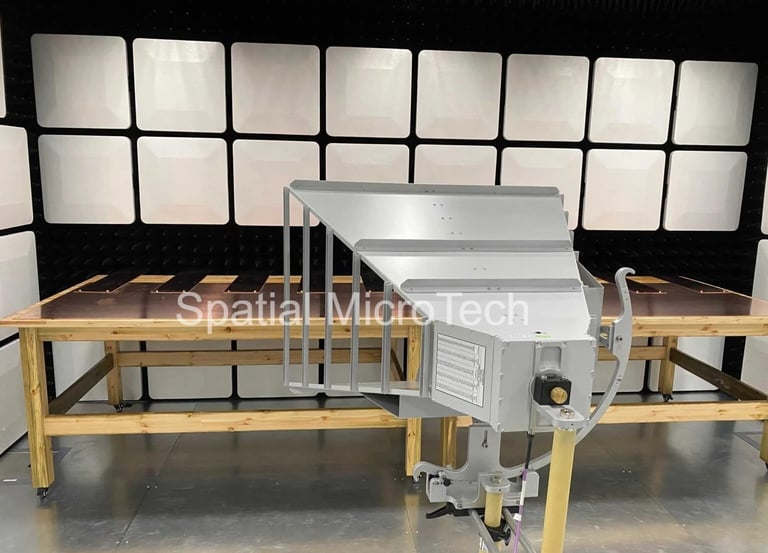

MIL-STD-461 Chamber
MIL-STD 461 is a RF-shielded semi-anechoic chamber designed for testing in accordance with Mil-STD 461E, Mil-STD 461F and Mil-STD-461G. It is made of DMC-PAN series self-standing shielding, ferrite tiles and Polypropylene based hybrid absorbers on all walls and ceiling with the reflective ground plane.
Full Compliance Emission per ANSI C63.4 and CISPR-16
Normalised site attenuation deviation (NSA) is better than ±3.5 dB between from 30MHz to 1 GHz sVSWR deviation better than ±5.5 dB from 1 GHz to 18 GHz.
Full Compliant Immunity per IEC/EN 61000-4-3
Field Uniformity deviation better than 6 dB at 75% of 16 measuring points from 26 MHz/ 80 MHz to 18 GHz
Load capacity 1500 Kg (Minimum), Higher load capacity option available
Frequency range 30 MHz to 40 GHz
Request Datasheet
Reach out for custom RF absorber solutions.
